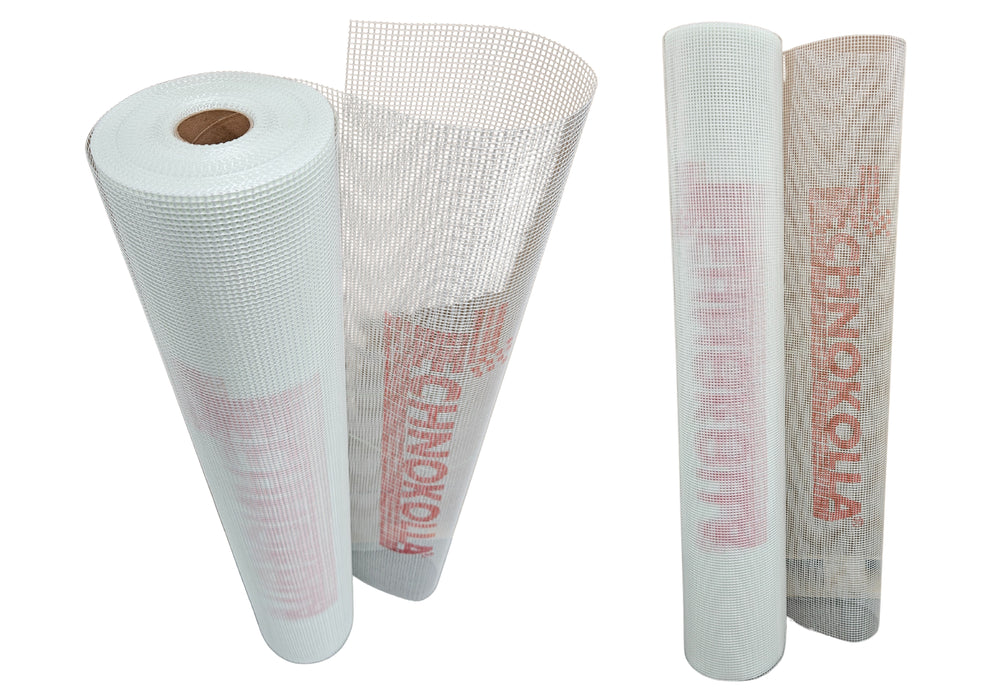

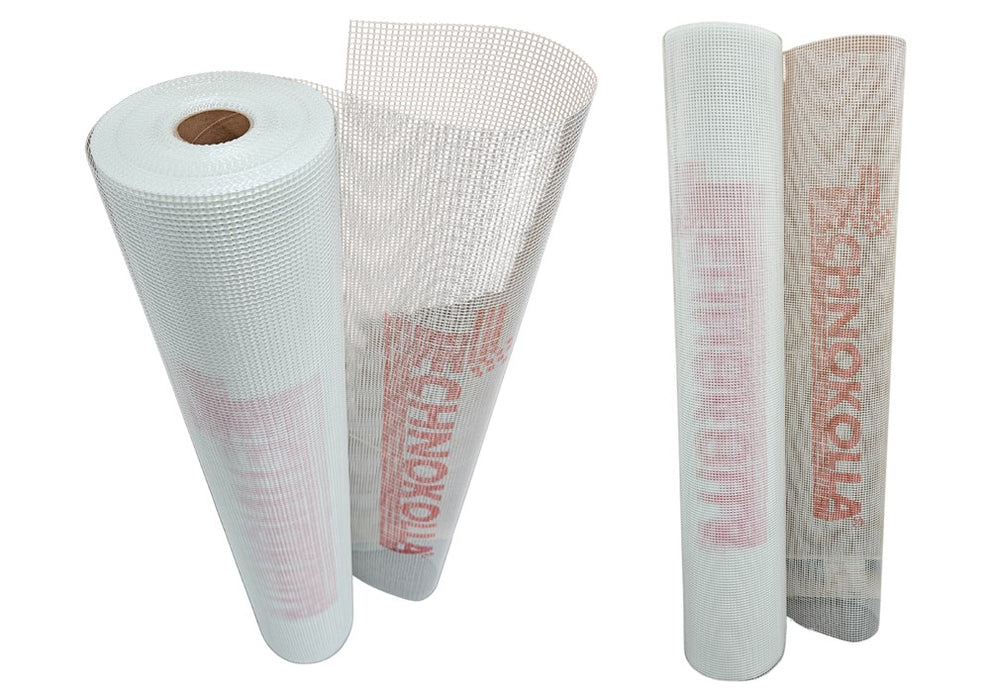

Mesh Fibre Roll 1mtr x 50mtrs (Full Roll)
Need a hand?
Give us a call 0800 NZ TRADE or Contact us
Need a hand?
Give us a call 0800 NZ TRADE or Contact us
General Description
STH1.4x4 is a high-performance glass fibre mesh fabric designed for use in external thermal insulation systems, cement-based screeds, and waterproofing applications. With its synthetic alkali-resistant coating, it offers strong resistance to degradation from adhesives and other building materials.
High mechanical strength
Excellent dimensional stability
Alkali-resistant treatment without emollient
Obstructs yarn drifting
Compatible with all major façade systems
Characteristic | Unit | STH1.4x4 – A101 |
---|---|---|
Mesh Opening (Warp / Weft) | mm (informative) | 4 / 4 |
Standard Width | cm (individual) | 100 |
Roll Length | m (individual) | 50 |
Treated Fabric Thickness | mm (informative) | 0.49 |
Loom State Fabric Weight | g/m² (informative) | 129 |
Treated Fabric Weight | g/m² (individual, min) | 160 |
Treatment Type | — | Alkali-resistant, no emollient |
Tested according to DIN EN ISO 13934-1.
Condition | Tensile Strength (N/50 mm) | Elongation (%) |
---|---|---|
Standard (Nominal / Individual) | 2100 / 1890 (warp & weft) | 4.1 / 4.1 |
Fast Test (6 hours) | 1600 / 1200 | 3.7 / 3.7 |
Fast Test (24 hours) | 1000 / 1000 | 50% / 50% |
3-Ions Solution (ETAG 004) | 1000 / 1000 | 50% / 50% |
Works Standard: 0326 Glass Fibre Mesh Fabrics
Inspection: Quality inspection and sample taking according to internal works standard 0326
Storage: Store in dry conditions between -10°C and +50°C
Custom Dimensions: Other widths and lengths available on request
