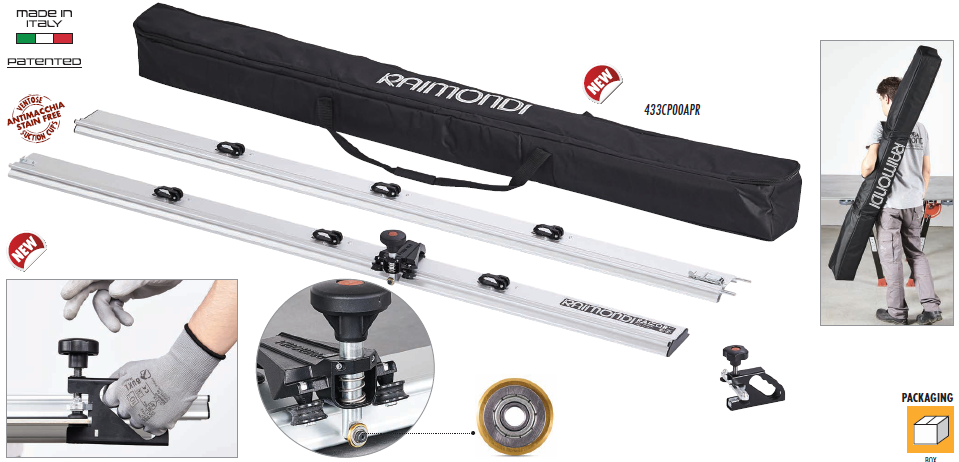

RAIZOR MkII PLUS – Rail cutting system for large format tiles consisting of:
• PREMIUM pliers for cutting tiles from 3 to 15 mm thick
• Die-cast aluminum cutting featuring dual-rail sliding and pin scoring element; Ø 20
mm titanium wheel with built in bearing included
• Two connectable rails providing each 160 cm (5.2”) length of cut
• Padded bag with shoulder strap and internal pocket
-----------------------------------------------------------------------------
• Rail cutting system for large format tiles providing lenght of cut up to 330 cm - 10.8’ (450cm - 14.8’ with accessory extension).
• RAIZOR MkII PLUS consists of:
- PREMIUM pliers for cutting tiles from 3 to 15 mm (1/8’ - 19/32’) thick;
- Die-cast aluminum cutting unit running on two rails and provided with spring pin scoring
element. Provided with Ø 20 mm (3/4’) titanium-coated wheel (wheel with built-in
bearing and calibrated high-strength steel screw);
- Two connectable rails providing each 160 cm (5.2’) length of cut. Each rail equipped with
3 dual-lip suction cups; length of cut of connected rails 330 cm (10.8’).
- all packed into a padded bag with shoulder straps and storage pockets.
• The cutting unit slides on the guide thanks to 3 resin wheels with high mechanical
performance, each equipped with 2 bearings. The adjustment system it is equipped with,
allows for perfect parallelism between the scoring wheel and the rail, eliminating any play.
This allows both to eliminates any kind of play and to perfectly align the titanium-coated
cutting-wheel to the rail resulting in maximum efficacy, precision and quality of cut.
• The Ø 20 mm (3/4’) scoring wheel features a special Titanium coating which gives it
extremely high wear resistance; it is also equipped with a built-in bearing to ensure maximum
smoothness, extreme precision and efficacy, and simple and fast replacement.
• The special design of the extruded aluminium profiles ensures very high structural rigidity
(+28% compared to the previous version) and, at the same time, a very low weight.
• Each rails is provided with 3 dual lip suction cups (with release tab) Ø 95 mm (3.7’) made
of stain-free rubber (6 suction cups in total). Suitable for moderately textured tiles too.
• In addition to being very useful when measuring the cut to be performed, the suction cups
prevent RAIZOR MkII PLUS from moving during the incision, thus ensuring maximum precision
and efficacy. Moreover, thanks also to their unique positioning inside aluminium profiles, they
prevent the rail from overturning regardless of the pressure applied to the cutting unit and
the cutting position. This makes Raizor MkII PLUS effective even for the most complicated cuts
and for very thick tiles.
• Each suction cup has a release tab that can be used if it gets stuck.
• Suction cup handles with 180° movement so as not to interfere with the carriage stroke.
• Distance between the scoring line and the aluminium profile: 20 mm (3/4’).
• The bag protects the product and allows it to be carried easily. It also features a pocket for
personal items or work tools.
• Supplied with PREMIUM progressive pressure pliers for cutting tiles from 3 to 15 mm (1/8’
- 19/32’) thick.
• To cut tiles more than 15 mm (19/32’) thick, use the accessory pliers code 169TM01AN.
• Accessory extension (art. 433CP00P100) with 100 cm (3.3’) cutting length to extend the
maximum cutting length to 450 cm (14.8’) or 275 cm (9’) using only one profile plus the
extension.
• Available as an accessory is the Power-Raizor MkII cutting unit to perform cuts with a diamond
disc at 45° and 90° and intermediate angles.
