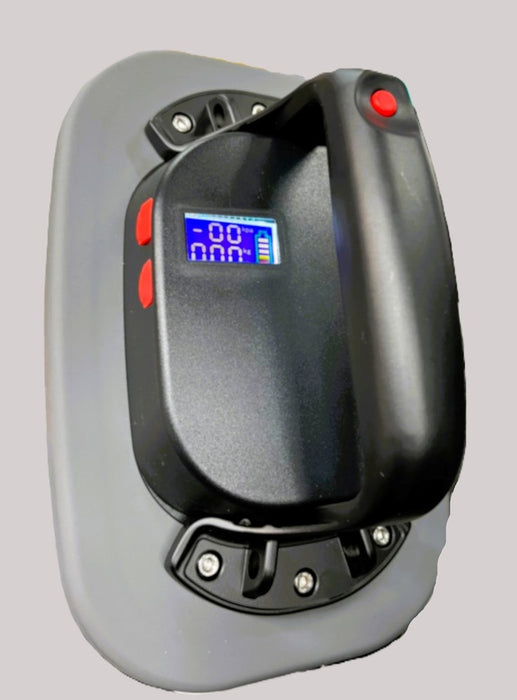

Compact, high-output lifter for fast, safe handling of non-porous and semi-porous materials—tiles, pavers, stone panels, glass, and flat furniture panels.
Key benefits
-
Set your hold: Adjustable vacuum stop up to -80 kPa (gauge) to match the surface.
-
Serious capacity: 270 kg WLL on clean, flat, non-porous surfaces with full pad contact.
-
All-day runtime: Built-in 4,500 mAh Li-ion battery designed for ~24 h continuous hold/operation.
-
Stays locked: Auto leak compensation keeps vacuum at your setpoint.
-
One-hand control: Ergonomic top handle with pick/hold/release and status indicator.
What it does
An electric pump builds vacuum and a controller continuously monitors pressure, cycling the pump only as needed. Set your stop value, place the pad, and the tool grips—adjust for rough or slightly porous surfaces, and the system compensates for small leaks to maintain hold.
Where it shines
-
Tiling & stone: Large-format tiles, porcelain slabs, stone panels, benchtops.
-
Landscaping: Dense concrete pavers/blocks, smooth or sealed cobbles.
-
Glass & joinery: Glass sheets, mirrors, laminated boards, furniture panels.
-
On site: Position, align, and place with one hand while keeping the other free.
Feature → benefit highlights
-
Self-adjusting mode: Optimizes start/stop thresholds for rough/semi-porous surfaces → stable grip with less power draw.
-
One-piece pad with self-cleaning filter: Three-hole base helps purge dust → better seal, less downtime.
-
Simple controls: Long-press 3 s power on; press to grip; double-click to release; long-press off → zero learning curve.
-
On-tool displays: Power level, electronic pressure readout, and estimated grip weight → instant confidence.
-
Serviceable design: Quick-swap filter and foam sealing ring → low running cost.
-
Wet-surface drainage path: Side exhaust/drain routing → helps shed incidental moisture.
Typical surfaces
Glass (clear/obscure), polished stone, dense concrete tiles/blocks, checker plate, metal, laminate panels, ribbed/rough finishes, sealed cobblestone and clay pavers. Always verify vacuum before lifting; derate for texture/porosity.
Technical specifications
-
Vacuum system: Electric pump with electronic pressure sensing & closed-loop control
-
Vacuum range: Adjustable; max stop -80 kPa (gauge)
-
WLL (non-porous): 270 kg with full pad contact
-
Battery: 4,500 mAh Li-ion; ~24 h continuous hold/operation
-
Duty mode: Automatic start/stop around setpoint; continuous monitoring
-
Seal: Replaceable perimeter foam sealing ring (flat pad)
-
Controls/indicators: Power, setpoint adjust, release; visual status indicator; pressure & power displays
-
Applications: Tiles, pavers, stone panels, glass, laminate/furniture panels, and many semi-porous finishes
What’s in the box
Electric vacuum lifter, charging lead/adapter, user manual. (Kit contents may vary by region.) Spare seal kits available.
Safety & compliance
Use only on clean, dry surfaces wherever possible; confirm vacuum before lifting. Not for lifting people. Use secondary restraint for overhead or vertical handling as required by site rules. Compliance markings: CE, RoHS, UKCA, CA65
