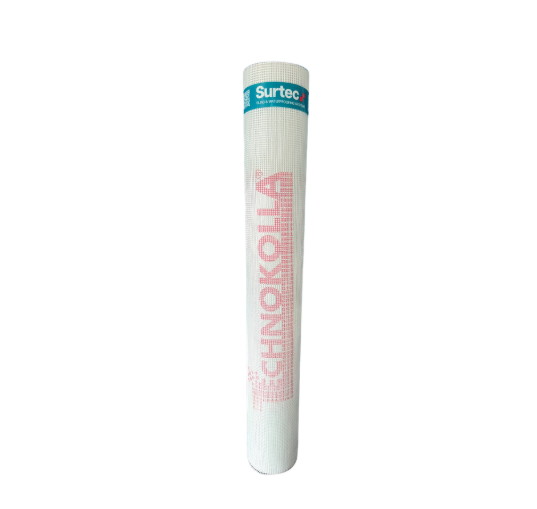

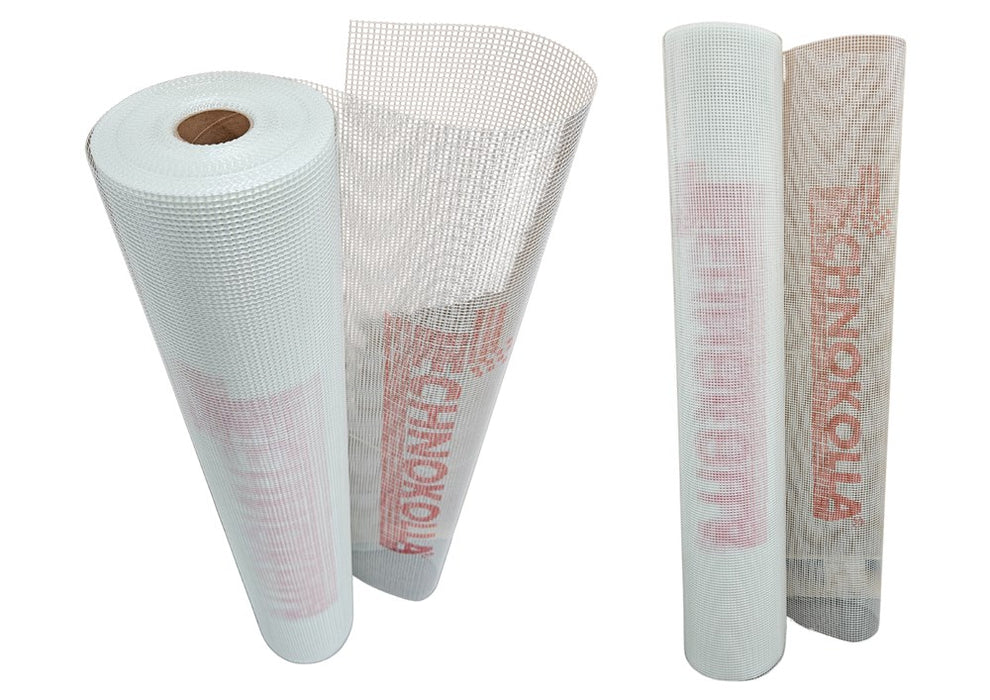

Mesh Fibre Roll 1mtr wide - per Linear Meter

$4.20 - $4.20

$4.20 incl. GST

$4.20 - $4.20

$4.20 incl. GST

Quantity

Need a hand?

Give us a call 0800 NZ TRADE or Contact us

Description

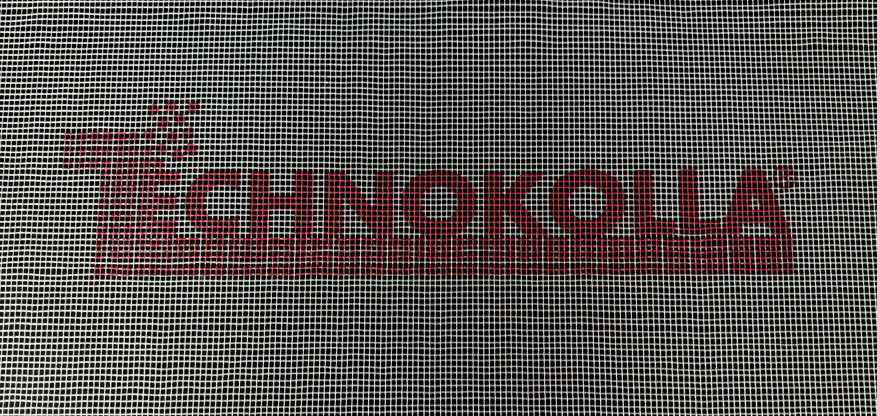

Glass Fibre Mesh Fabric – STH1.4x4

General Description
STH1.4x4 is a high-performance glass fibre mesh fabric designed for use in external thermal insulation systems, cement-based screeds, and waterproofing applications. With its synthetic alkali-resistant coating, it offers strong resistance to degradation from adhesives and other building materials.

Key Properties

High mechanical strength
Excellent dimensional stability
Alkali-resistant treatment without emollient
Obstructs yarn drifting
Compatible with all major façade systems

Technical Characteristics

Characteristic	Unit	STH1.4x4 – A101
Mesh Opening (Warp / Weft)	mm (informative)	4 / 4
Standard Width	cm (individual)	100
Roll Length	m (individual)	50
Treated Fabric Thickness	mm (informative)	0.49
Loom State Fabric Weight	g/m² (informative)	129
Treated Fabric Weight	g/m² (individual, min)	160
Treatment Type	—	Alkali-resistant, no emollient

Tensile Strength & Elongation

Tested according to DIN EN ISO 13934-1.

Condition	Tensile Strength (N/50 mm)	Elongation (%)
Standard (Nominal / Individual)	2100 / 1890 (warp & weft)	4.1 / 4.1
Fast Test (6 hours)	1600 / 1200	3.7 / 3.7
Fast Test (24 hours)	1000 / 1000	50% / 50%
3-Ions Solution (ETAG 004)	1000 / 1000	50% / 50%

Standards & Additional Information

Works Standard: 0326 Glass Fibre Mesh Fabrics
Inspection: Quality inspection and sample taking according to internal works standard 0326
Storage: Store in dry conditions between -10°C and +50°C
Custom Dimensions: Other widths and lengths available on request
