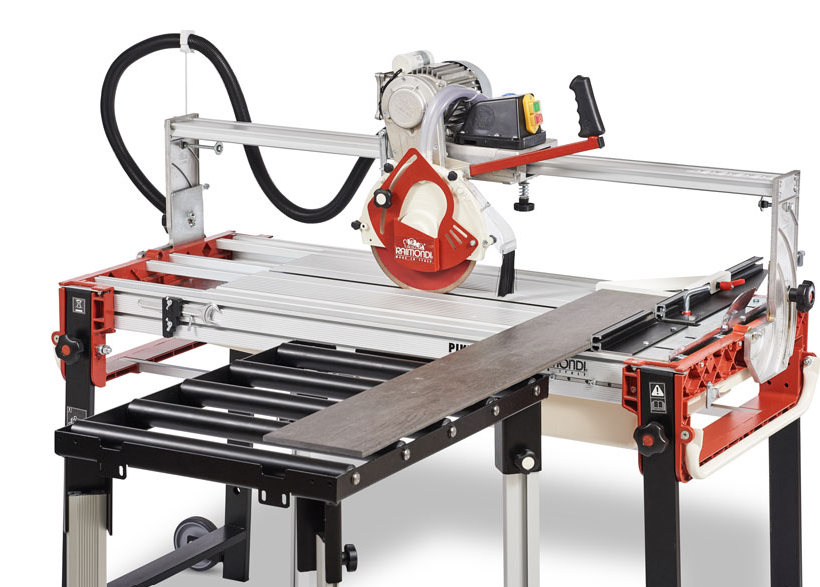

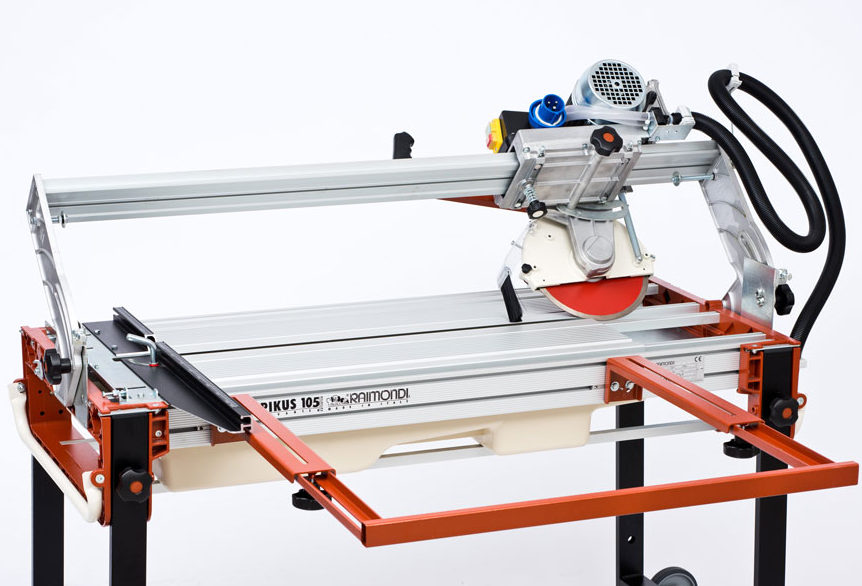

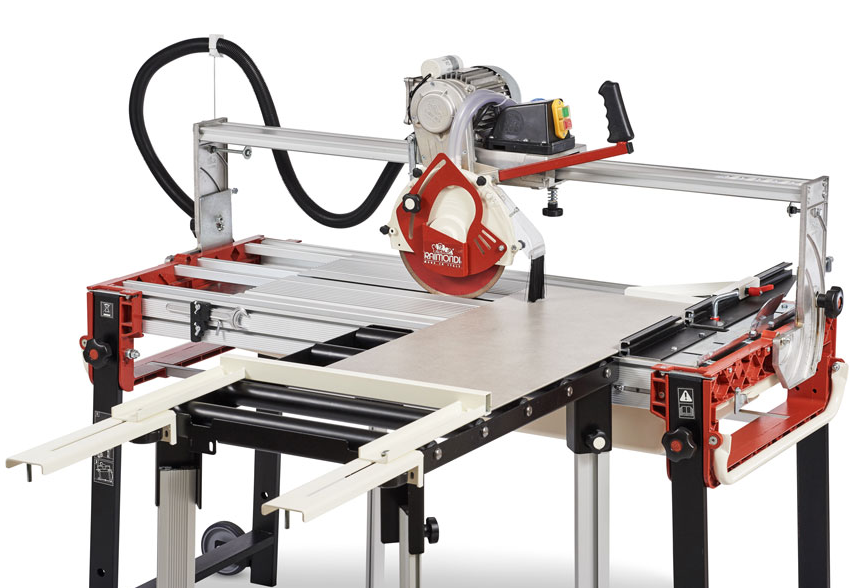

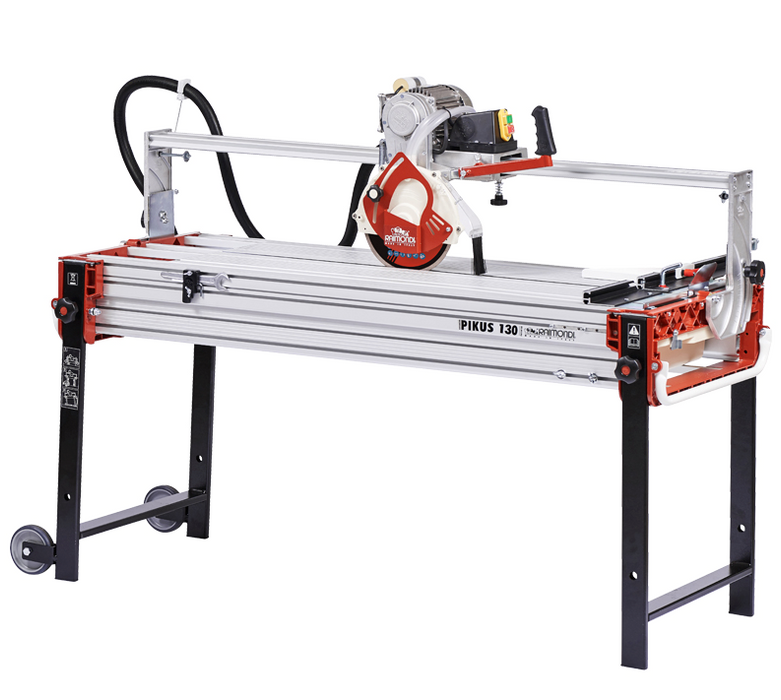

RAIMONDI PIKUS Wetsaw

Pro-grade bridge wet saw for large-format tile and stone; precision, power, and clean cuts on site.

$4,940.40 - $6,141.00

$6,141.00 incl. GST

$4,940.40 - $6,141.00

$6,141.00 incl. GST

Overview

Raimondi’s PIKUS Advance series are belt-drive bridge wet saws designed for porcelain, stone, and masonry. All models share a 1.5 HP (≈1.1 kW) motor, Ø250 mm blade, 0–45° bevel, plunge cutting, and a 38 L washable water tank with dual adjustable jet nozzles. Choose your cut length: 85 cm, 105 cm, or 130 cm.

Quantity

Need a hand? Contact us

Specification

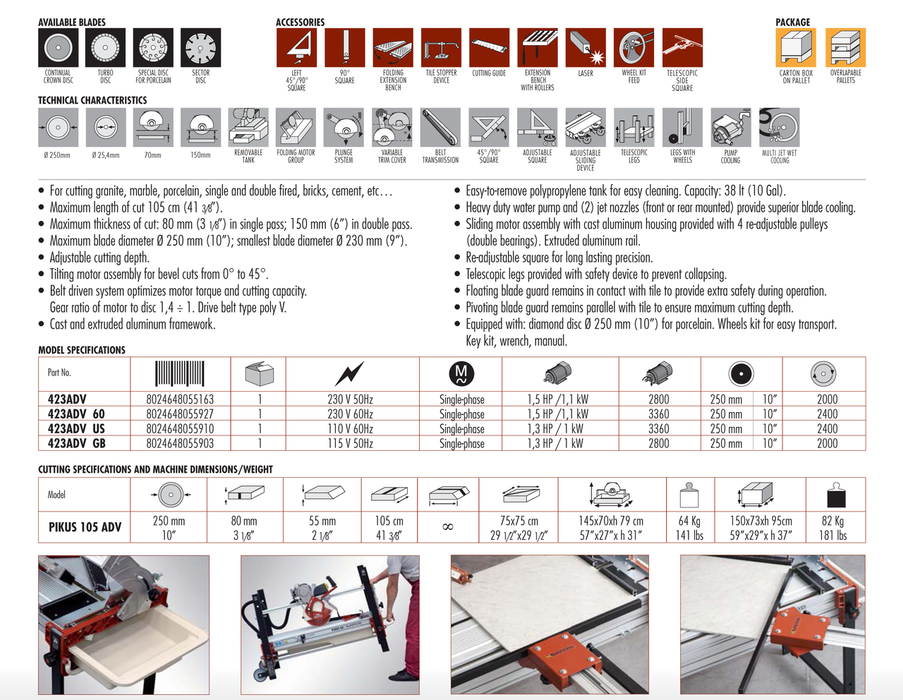

Key technical specs for the PIKUS Advance family.

Core specs (all models):

Motor: 1.5 HP (≈1.1 kW) belt-drive (poly-V; 1.4:1 ratio)
Blade: Ø250 mm (10″)
Max cut thickness: 80 mm single pass, 150 mm double pass
Bevel cuts: 0–45° (tilting motor)
Plunge (adjustable) cutting depth
Cooling: heavy-duty pump + two repositionable jet nozzles
Tank: 38L removable polypropylene (≈10 gal)
Frame/Rail: cast + extruded aluminium, sliding head on 4 re-adjustable pulleys

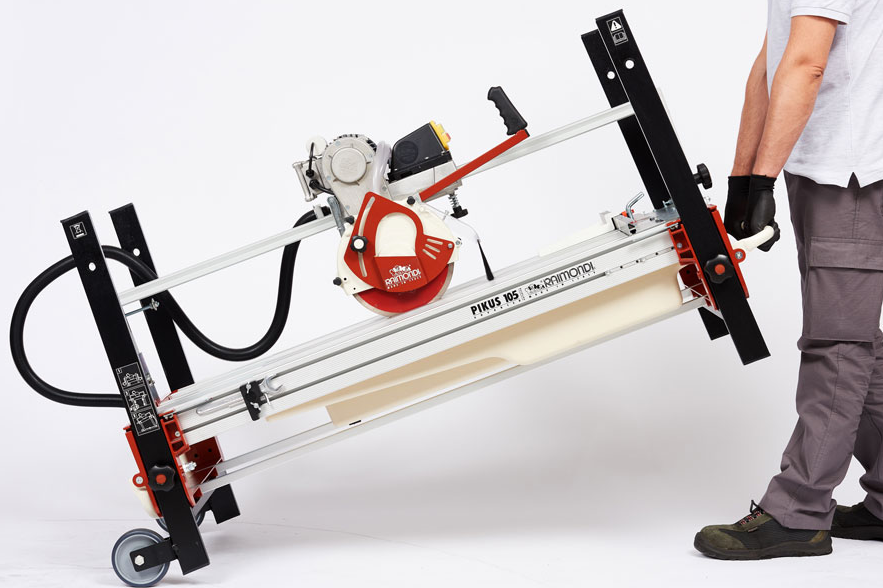

Legs: telescopic with safety device; wheels for transport; floating/pivoting blade guard
Typical materials: porcelain, ceramic, marble, granite, bricks, cement

Model differences (length of cut):

PIKUS 85 Advance: 850 mm max cut length.
PIKUS 105 Advance: 1050 mm max cut length.

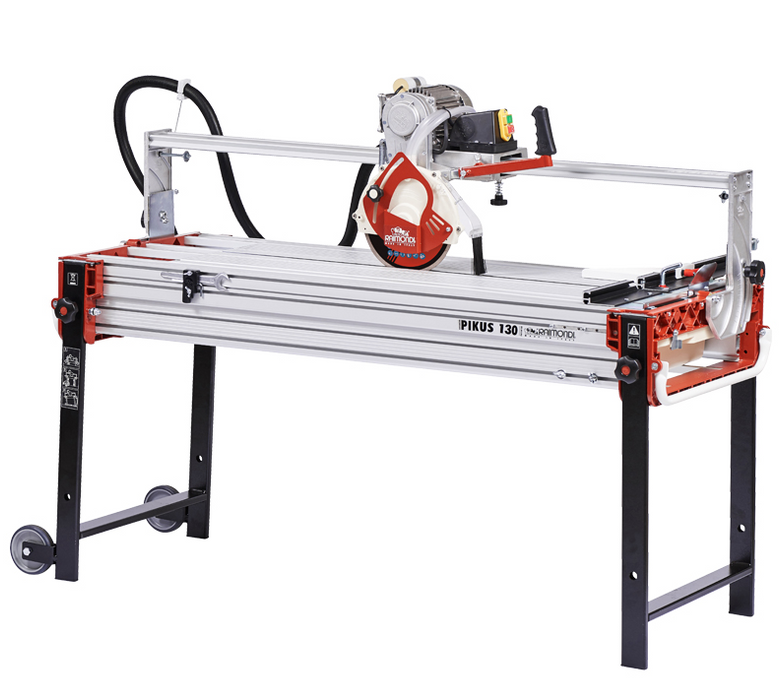

PIKUS 130 Advance:1300 mm max cut length.

Includes wheels kit, key kit, wrench, manual

What’s in the box

PIKUS Advance saw (selected length: 85 / 105 / 130)
Ø250mm diamond blade for porcelain
Telescopic legs + transport wheels
Square/guide, tool kit (key kit & wrench)

Operator manual

Applications & Use

Straight, plunge, and 0-45° mitre cuts on porcelain/ceramic slabs and stone.
Site cutting of benchtop upstands, skirtings, thresholds, coping tiles, bricks.
Dual-jet cooling helps keep chip-out low on hard porcelains.

Removable 38 L tank speeds slurry clean-outs between cuts.

Setup & Maintenance

Power options: manufactured in 230–240 V and 110–115V variants (order the 230 V / 50 Hz for NZ).
Blade care: dress blade as needed; maintain continuous water flow (check pump and jet aim).
After-cut: empty/flush 38 L tank; wipe rails and table; check pulley glide; re-square fence periodically.

Dimensions

Rip capacity = model’s max cut length (85 / 105 / 130 cm).
Largest square tile you can cut corner-to-corner (diagonal) ≈ L /√2.
85 → ~600 mm square
105 →~740 mm square
130 →~920 mm square

Rule-of-thumb calculation for planning.

Key technical specs for the PIKUS Advance family.

Core specs (all models):

Motor: 1.5 HP (≈1.1 kW) belt-drive (poly-V; 1.4:1 ratio)
Blade: Ø250 mm (10″)
Max cut thickness: 80 mm single pass, 150 mm double pass
Bevel cuts: 0–45° (tilting motor)
Plunge (adjustable) cutting depth
Cooling: heavy-duty pump + two repositionable jet nozzles
Tank: 38L removable polypropylene (≈10 gal)
Frame/Rail: cast + extruded aluminium, sliding head on 4 re-adjustable pulleys
Legs: telescopic with safety device; wheels for transport; floating/pivoting blade guard
Typical materials: porcelain, ceramic, marble, granite, bricks, cement

Model differences (length of cut):

PIKUS 85 Advance: 850 mm max cut length.
PIKUS 105 Advance: 1050 mm max cut length.
PIKUS 130 Advance:1300 mm max cut length.

Includes wheels kit, key kit, wrench, manual

PIKUS Advance saw (selected length: 85 / 105 / 130)
Ø250mm diamond blade for porcelain
Telescopic legs + transport wheels
Square/guide, tool kit (key kit & wrench)

Operator manual

Straight, plunge, and 0-45° mitre cuts on porcelain/ceramic slabs and stone.
Site cutting of benchtop upstands, skirtings, thresholds, coping tiles, bricks.
Dual-jet cooling helps keep chip-out low on hard porcelains.

Removable 38 L tank speeds slurry clean-outs between cuts.

Power options: manufactured in 230–240 V and 110–115V variants (order the 230 V / 50 Hz for NZ).
Blade care: dress blade as needed; maintain continuous water flow (check pump and jet aim).
After-cut: empty/flush 38 L tank; wipe rails and table; check pulley glide; re-square fence periodically.

Rip capacity = model’s max cut length (85 / 105 / 130 cm).
Largest square tile you can cut corner-to-corner (diagonal) ≈ L /√2.
85 → ~600 mm square
105 →~740 mm square
130 →~920 mm square

Rule-of-thumb calculation for planning.
